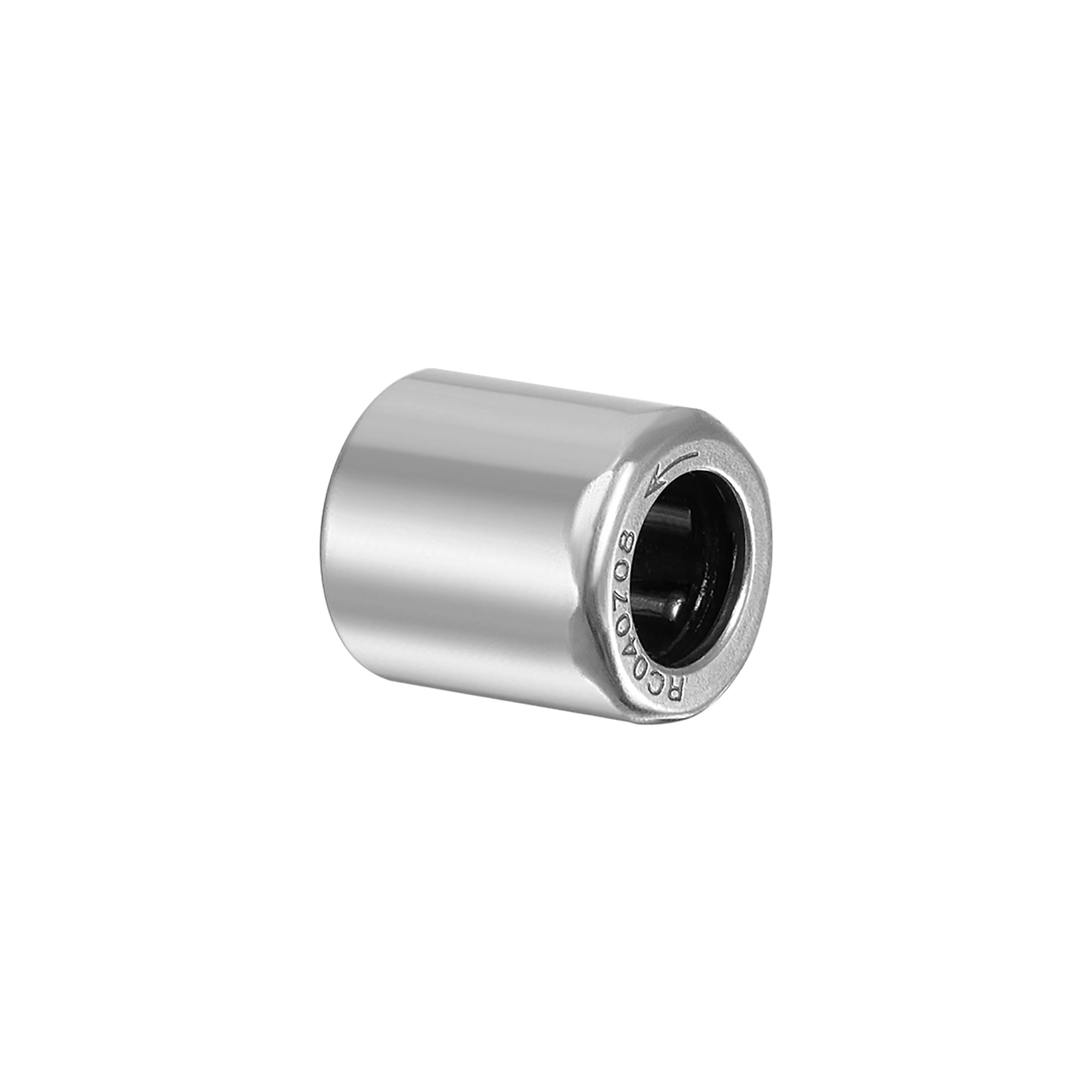

RC040708 Drawn Cup One Way Needle Roller Clutch Bearing

Despite having a small cross-section, the bearings still have a high load-carrying capacity. Needle roller bearings are equipped with thin and long rollers, so the radial structure is compact, and their bore size and load capacity are the same as other types of bearings, the outer diameter is the smallest, which is especially suitable for support structures where the radial mounting size is restricted. Types of Needle Roller Bearings Drawn Cup Needle Roller Bearings 2 types: open type and closed-end type. They have no inner ring, the needle roller is in direct contact with the shaft surface. With cage are suitable for high speed and heavy load, mostly used in machine tool gearbox or textile machinery. Needle Roller Bearings with Machined Rings Made of chrome steel, with or without inner ring. It has the advantage of small radial cross-sectional dimensions and carries a high radial load. It has a cage, so it has a higher speed and can adapt to the requirements of the gearbox. Needle Roller and Cage Assemblies Bearings with high load carrying capacity and high stiffness, compact bearing construction in which the assembly shaft and bearing housing bore can be used as raceways. Model: RC040708 (I.D. (Fw)= 1/4inch, O.D. (D)= 7/16inch, Width (C)= 1/2inch) Good heat tolerance, high load carrying capacity and stiffness
